Fine grade cast iron Precision ground hardened worm Ratio: 90:1 360degree graduations Comes with Index Plates and Tail Stock.

Titling Rotary Table Ideal for engineering applications small enough to be mounted on small mills or on a lathe vertical slide or cross slide. The table tilts up to 90 degrees with a scale marked in 1-degree graduations.

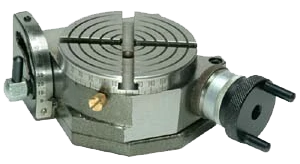

Horizontal/Vertical Rotary Table 4” This rotary table is ideal for milling and multi-purpose work and anyone creating smaller precision work. The table features a whole degree scale on the dial, lash adjustment screw, worm gear drive, reference lines and a ball bearing rotary support.

This set comes with 2 Step Blocks, 2 T-nuts, 2 Clamps & 2 Bolts. Clamps are 1" x 9/16" "T" nuts fit 5/8"/3/8" slots.

The Rotary Table Horizontal/Vertical Type 6" is precision-made with a fully ground finish, ensuring high accuracy for milling tasks. The worm gear ratio is 1:90, allowing one turn of the handle to move the table by 4 degrees. The micro collar is graduated in steps of 1 minute, making it ideal for circular cutting, angle setting, boring, and spot facing. It can be used in both horizontal and vertical orientations and weighs approximately 35 lbs.

This H.V. Rotary table is precision made with fully ground finish.
