METAL BAND SAW 8" X 7"

The BBMBS87 Metal Cutting Bandsaw is designed for precise, controlled cutting across a range of metalworking applications. Its 1.1 kW, 1.5 HP motor delivers the power needed for demanding cuts, while the gearbox drive supports dependable operation during extended use.

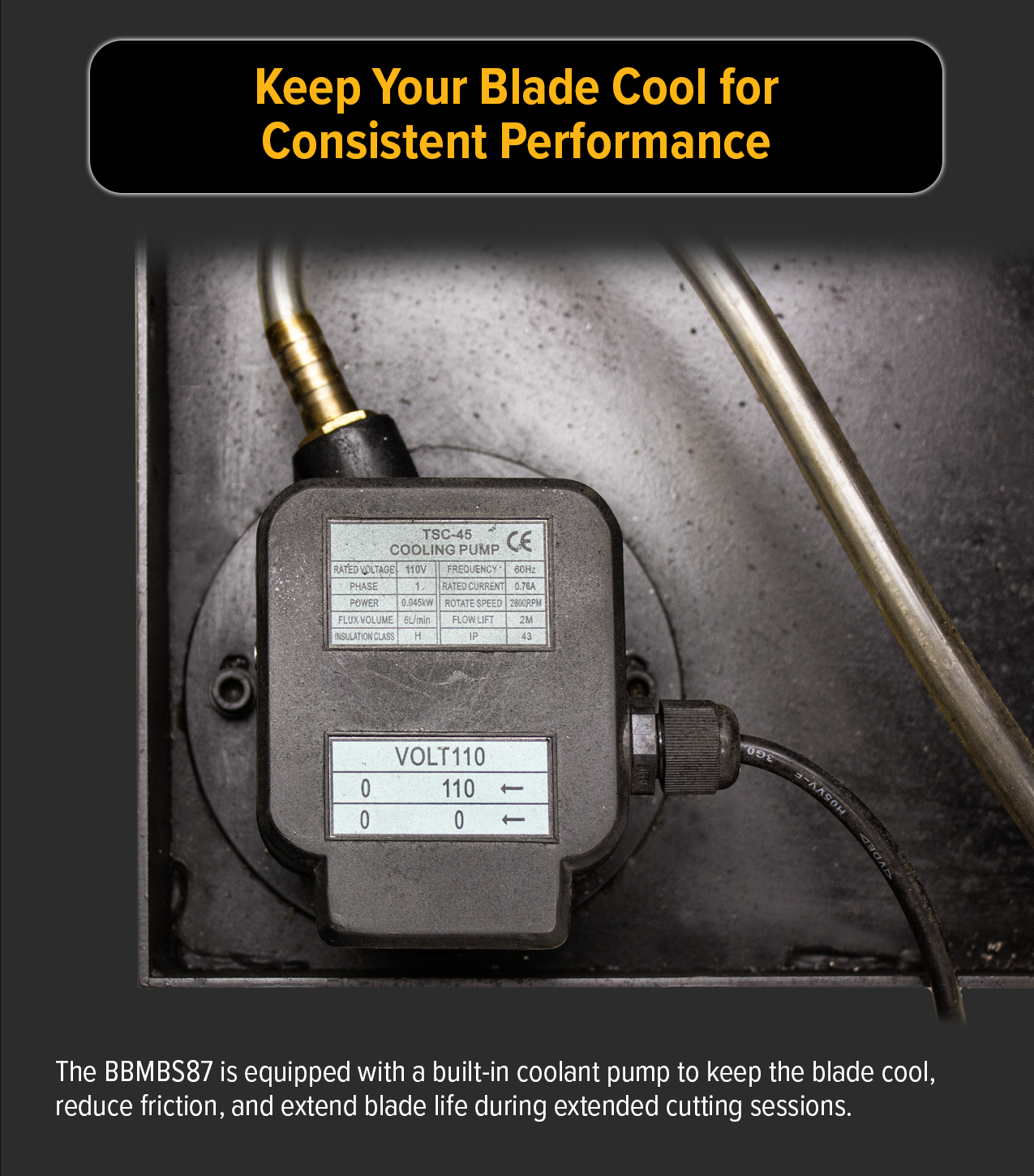

An integrated coolant pump helps reduce heat and friction at the blade, supporting consistent cutting performance and longer blade life. The built-in clamping system holds material securely, and the integrated cutting stop makes it easier to produce repeat cuts without measuring each workpiece from the beginning.

Positive stops at 0°, 45°, 60° and 90° allow fast, repeatable angle adjustments. The adjustable work support rest provides added stability when cutting longer or larger material, while manual and automatic operating modes give the user greater flexibility for different jobs.

Features

• 1.1 kW, 1.5 HP motor provides strong cutting performance for metalworking applications

• Integrated coolant pump helps reduce blade heat and friction

• Built-in clamping system holds material securely during cutting

• Integrated cutting stop supports accurate, repeatable cuts

• Positive stops at 0°, 45°, 60° and 90° simplify angle setup

• Adjustable work support rest improves stability for longer material

• Manual and automatic operating modes provide added versatility

• Gearbox drive supports dependable power transmission

• Cutting capacity up to 7.8" x 6.7" for rectangular material at 90°

Specifications

• Model: BBMBS87

• Motor power: 1.1 kW

• Motor output: 1.5 HP

• Voltage: 120V

• Amperage: 14.1A

• Operating modes: Manual and automatic

• Drive type: Gearbox

• Cutting angles: 0°, 45°, 60° and 90°

• Angle adjustment: Built-in positive stops

• Blade cooling: Integrated coolant pump

• Clamping system: Built-in with cutting stop

• Material support: Adjustable work support rest

• Circular cutting capacity at 90°: 6.7"

• Rectangular cutting capacity at 90°: 7.8" x 6.7"

• Circular cutting capacity at 60°: 2.7"

• Rectangular cutting capacity at 60°: 2.3" x 2.3"

• Circular cutting capacity at 45°: 4.7"

• Rectangular cutting capacity at 45°: 4.3" x 4.3"

• Blade size: 20 x 0.9 x 2085 mm

• Package dimensions: 125 x 41 x 115 cm

• Net weight: 173 kg

• Gross weight: 225 kg

FAQ

What materials is the BBMBS87 designed to cut?

The BBMBS87 is designed for metal cutting applications.

What is the maximum cutting capacity at 90°?

At 90°, the saw can cut circular material up to 6.7" in diameter and rectangular material up to 7.8" x 6.7".

Can the saw make angled cuts?

Yes. It includes positive stops at 0°, 45°, 60° and 90° for repeatable angle adjustments.

What is the cutting capacity at 45°?

At 45°, the saw can cut circular material up to 4.7" and rectangular material up to 4.3" x 4.3".

Does the saw include a coolant system?

Yes. An integrated coolant pump helps keep the blade cool and reduce friction during cutting.

Can the BBMBS87 make repeat cuts?

Yes. The built-in clamping system includes a cutting stop to help produce consistent, repeatable workpieces.

Does the saw offer both manual and automatic operation?

Yes. The BBMBS87 has manual and automatic operating modes.

What blade size does the saw use?

The specified blade size is 20 x 0.9 x 2085 mm.
